Cloudaware CMDB Data Import Into ServiceNow Using Google BigQuery

Cloudaware can import CMDB data into Google BigQuery and then automatically upload the data to ServiceNow on a regular basis. This guide explains how to set up and automate the import of Cloudaware CMDB data into ServiceNow CMDB using a Google BigQuery table.

logo rgb_sign dark (3).png To see how Cloudaware seamlessly integrates with ServiceNow in action, request a demo.

Use case: When using Cloudaware and ServiceNow for asset management, customers may want to download their appliation inventory or a list of AWS resources from Cloudaware CMDB into ServiceNow to enrich existing data. Cloudaware uses Google BigQuery as temporary storage for the imported CMDB data file.

The customer must configure data import in ServiceNow to ensure the data is uploaded and mapped correctly. The upload can be scheduled as one-time or as a recurring automated job.

Prerequisites

  1. Define the scope of Cloudaware CMDB data to be downloaded into ServiceNow. Contact your dedicated account manager or tam@cloudaware.com to specify the scope.

  2. Define whether to use a customer-managed* or a Cloudaware-managed** Google BigQuery instance.

*If you already have a Google BigQuery table configured in your Google environment, contact your dedicated account manager or tam@cloudaware.com to obtain the resulting file.

**If you prefer a Cloudaware-managed BigQuery instance, contact your account manager or tam@cloudaware.com. Cloudaware will configure the table and file and provide a path for setup.

  1. A ServiceNow Admin role is required to run the Cloudaware script used for automation. If unavailable, contact your organization’s ServiceNow Admin for assistance.

Create a data source

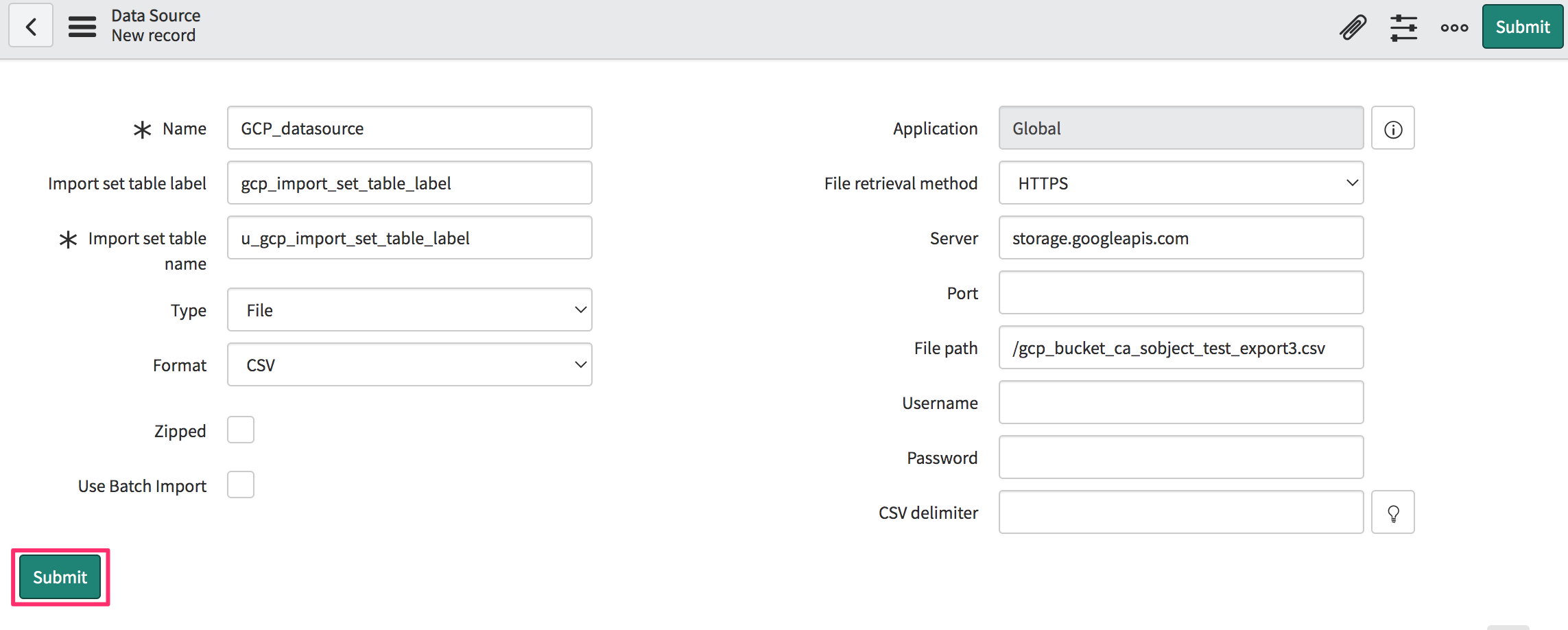

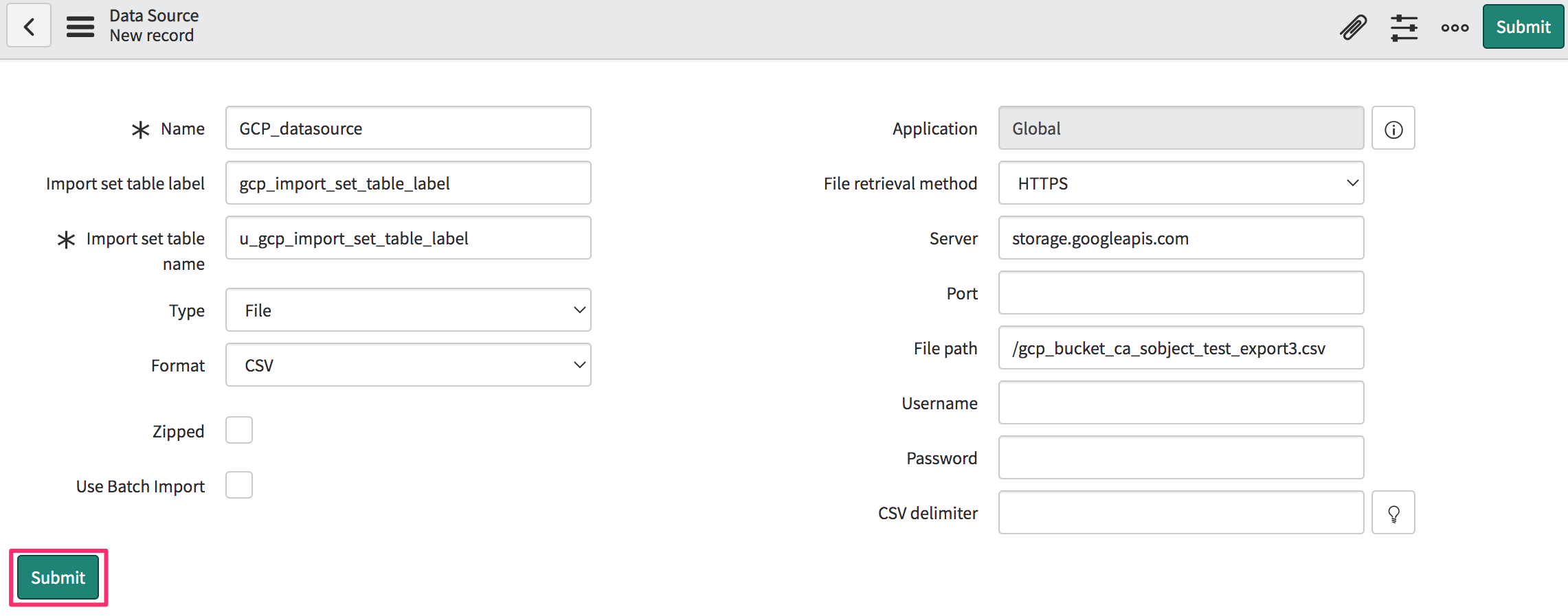

Create a data source in ServiceNow to store imported Cloudaware data as the import set table (see ServiceNow Documentation). Fill in the form and click Submit:

Cloudaware CMDB data import to ServiceNow using Google BQ - create data source.png

If you don’t have a preconfigured BigQuery table, Cloudaware will provide the File path value.

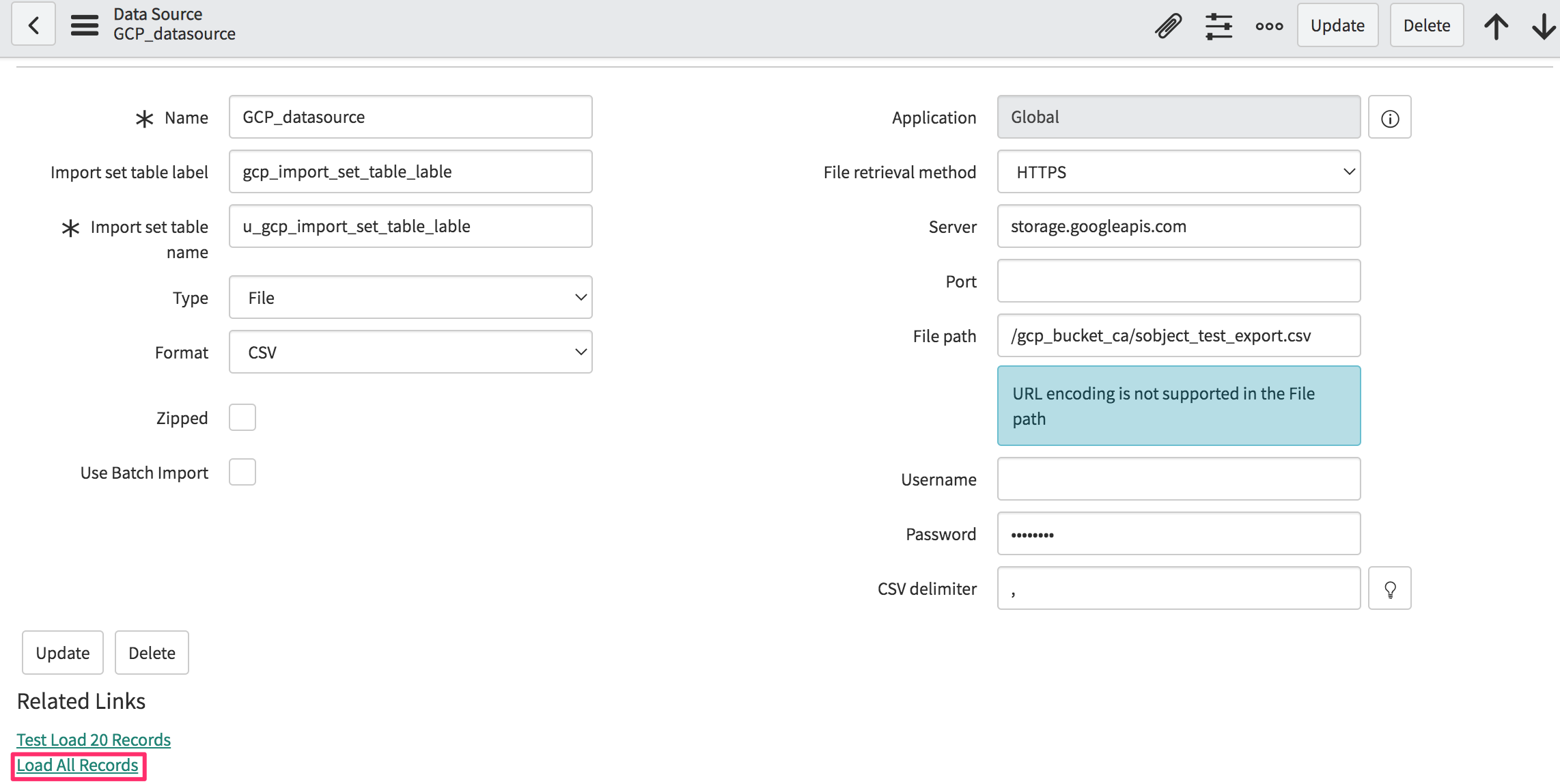

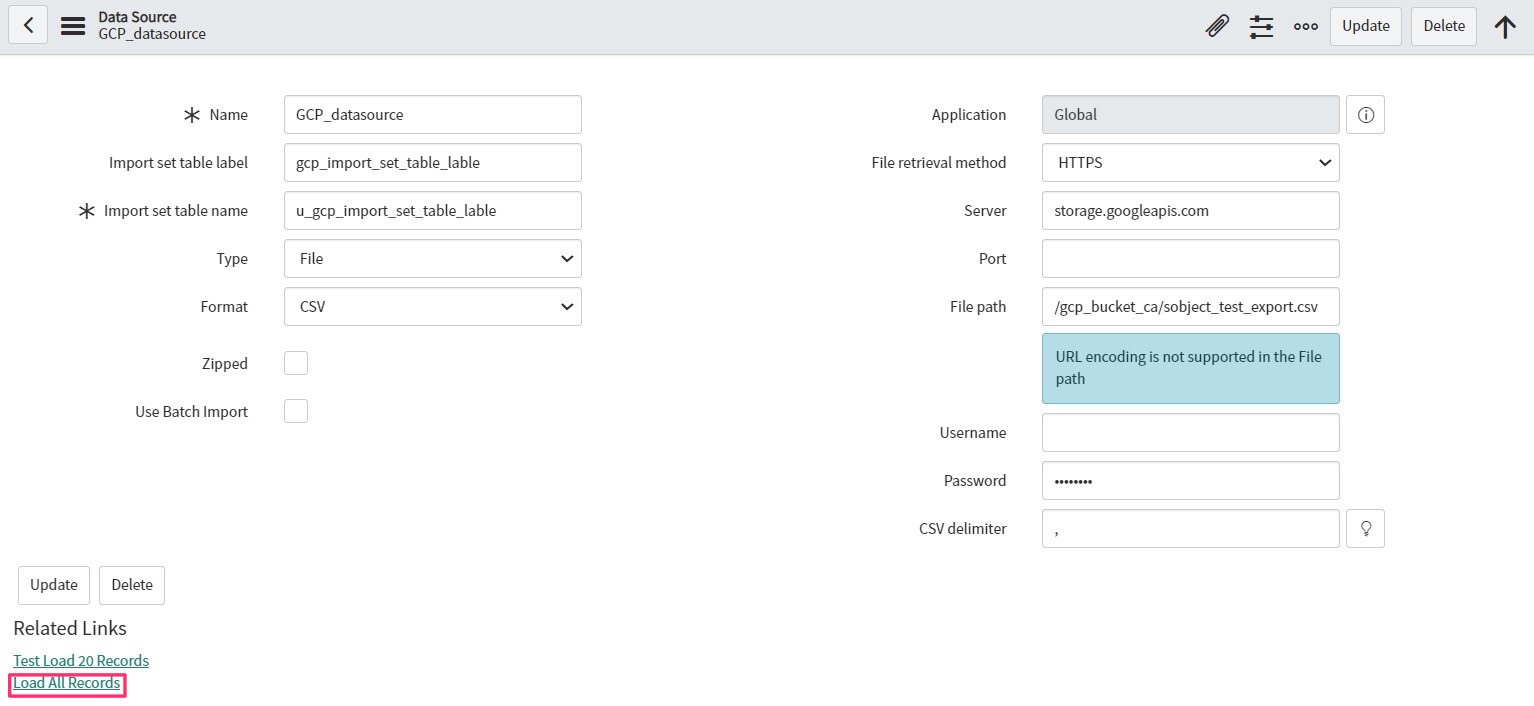

Click Load All Records to load data into the import set table:

Cloudaware CMDB data import to ServiceNow using Google BQ - load all records.jpeg

Create a target table

The target table stores ServiceNow CMDB data. If you already use ServiceNow CMDB and have a target table for external imports, skip to step 3 (Create a transform map).

Manual

See ServiceNow Documentation for instructions.

Use consistent field names in both the target table and the import set (stage) table to enable automated mapping of fields.

Automatic (custom script)

If you prefer automation, create the import set table (stage table) first. The script below checks field names and uses them to create a target table with automated mapping.

CODE
var attrs = new Packages.java.util.HashMap();
var table_label  = "target_table_label",  // specify your target table label name
  table_name = "target_table_name", // specify your target table name
  extends_table = 'cmdb_ci'; // specify where the target table to be created

var gr = new GlideRecord('u_gcp_import_set_table_label'); // specify your import set table (stage table)
gr.setLimit(1);
gr.query();

while (gr.next()) {
var fields = new GlideRecordUtil().getFields(gr);
  for (var i = 0; i < fields.length; i++){
    fieldName = fields[i];
    var labelName = gr[fieldName].getLabel();
  var ca = new GlideColumnAttributes(labelName);
  ca.setType("string");
  ca.setUsePrefix(true);
  attrs.put(labelName, ca);
  }
}

var tc = new GlideTableCreator(table_name , table_label);
tc.setColumnAttributes(attrs);
if(typeof extends_table != 'undefined') tc.setExtends(extends_table);
tc.update();

Run this script before creating the transform map in Step 3 (Create a transform map).

Create a transform map

Set up a transform map to define and automate field mapping.

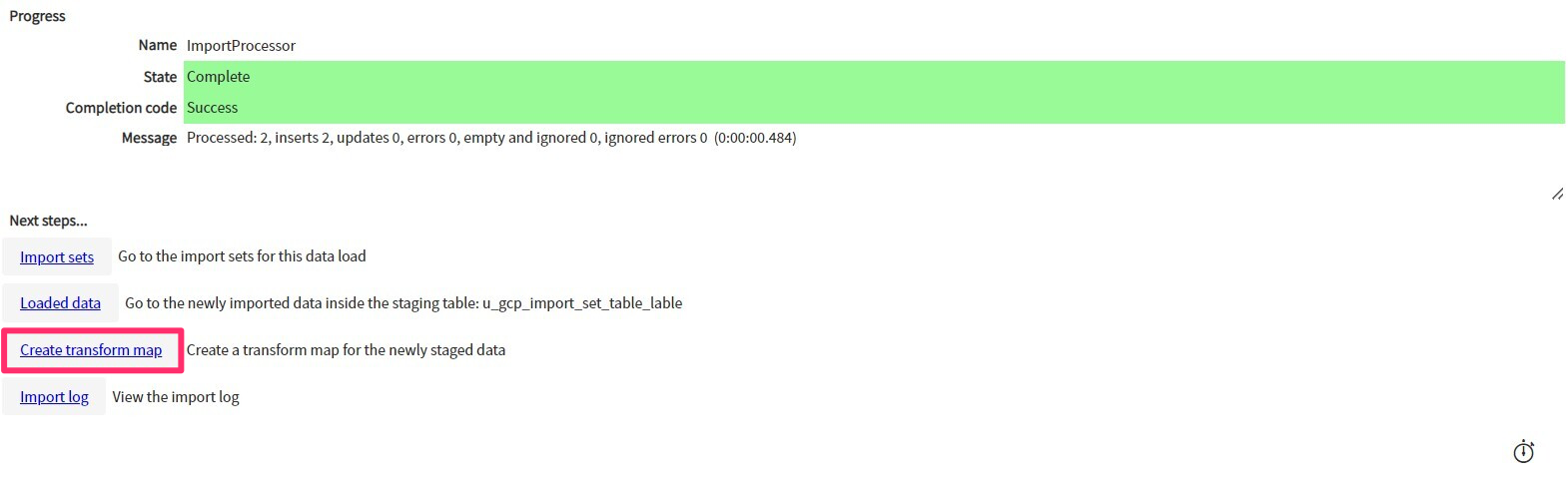

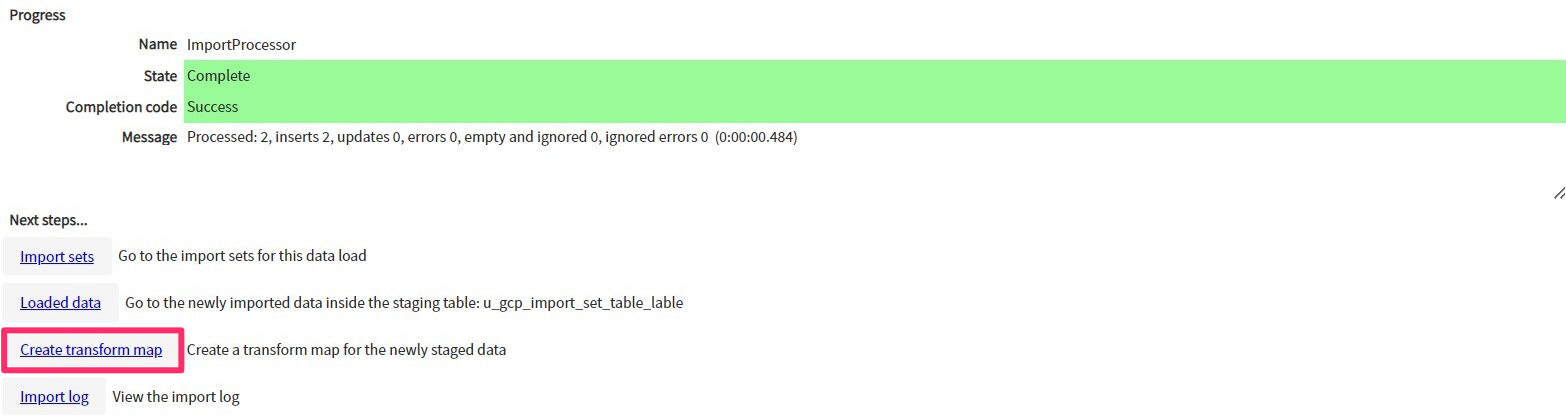

  1. Click Create transform map:

    Cloudaware CMDB data import to ServiceNow using Google BQ - create transform map.png

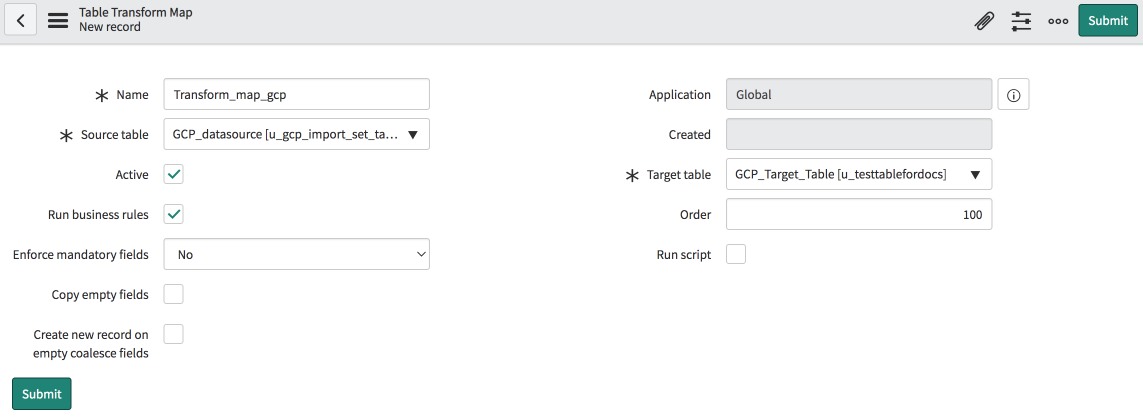

  2. Fill in the form:

    Cloudaware CMDB data import to ServiceNow using Google BQ - fill out the form.png

    WHERE
    Source table – the combination of data source and import set table data (see step 1 - Create a data soure)
    Target table – the table that you create manually or automatically using the Cloudaware script (see step 2 - Create a target table)

    See ServiceNow Documentation for instructions.

    Click Submit.

  3. In 'Related Links', select:
    Auto Map Matching Fields – to create mapping automatically
    Mapping Assist – to create mapping manually

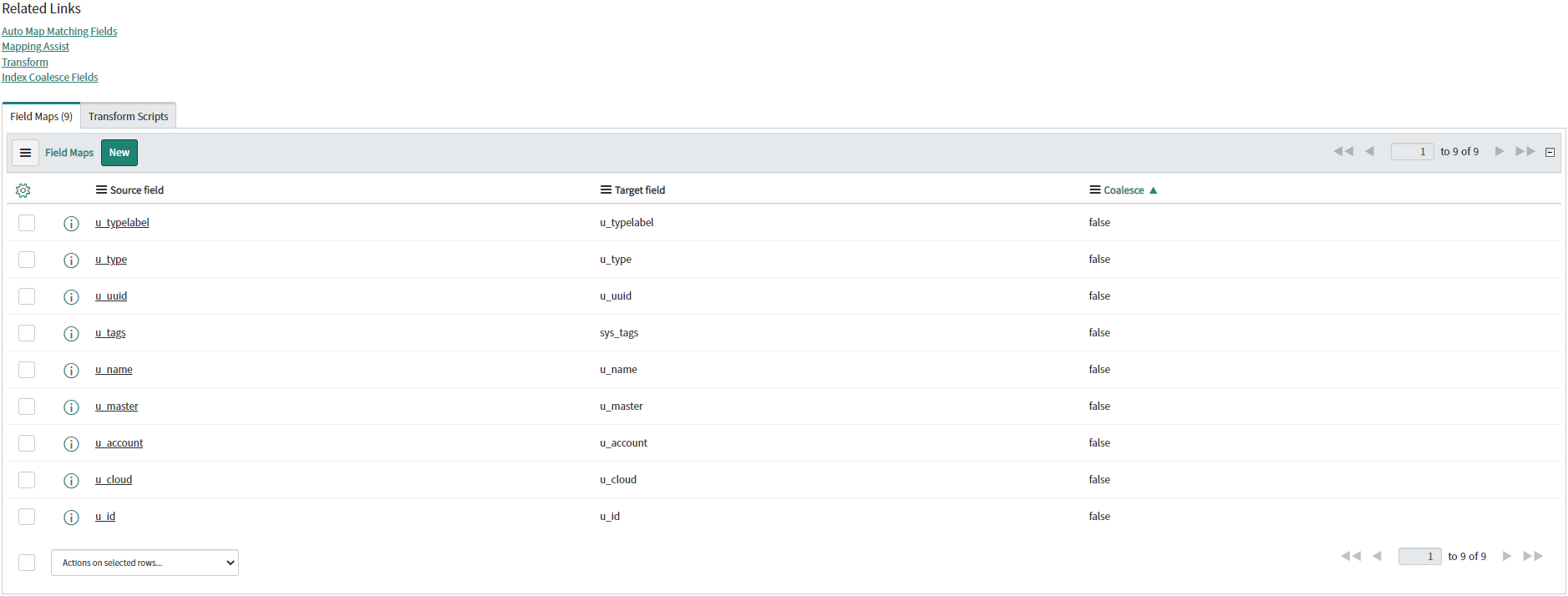

    If field names were consistent or the target table was created by script, use automatic mapping. Example field mappings may look like this:

    Cloudaware CMDB data import to ServiceNow using Google BQ - example field mappings.png

For one-time imports, set Coalesce to false.

For recurring imports, define a unique field and set Coalesce to true. Learn more here.

Click Transform.

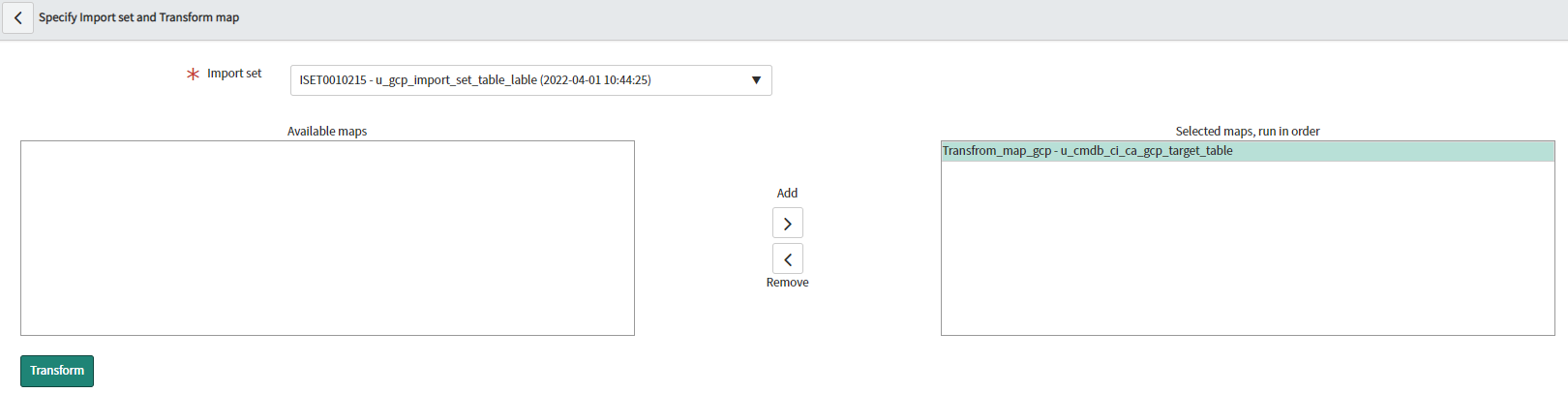

  1. Specify Import set and Transform map values. Сlick Transform again to proceed.

    Cloudaware CMDB data import to ServiceNow using Google BQ - specify  Import set and Transform map.png

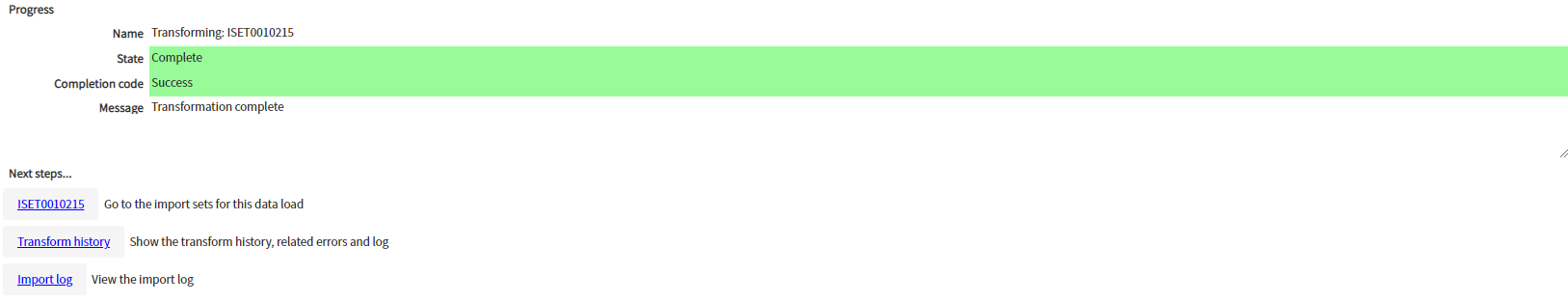

    The data will be loaded into the target table:

    Cloudaware CMDB data import to ServiceNow using Google BQ - data import status.png

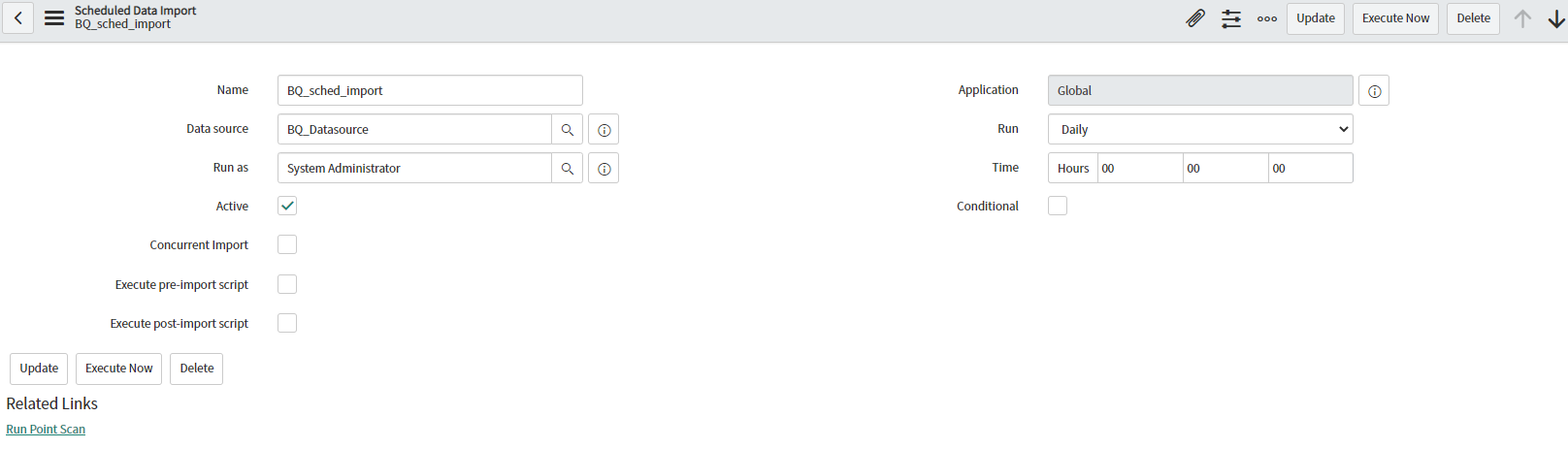

Schedule a data import

Once tables and mappings are configured, schedule recurring data imports. See ServiceNow Documentation for instructions.

Cloudaware CMDB data import to ServiceNow using Google BQ - schedule data import.png
