Cloudaware CMDB can act as a node classifier and return classification data to Ansible. The features that make Cloudaware a more transparent source of configuration data are:

  • Field and Record Level Security

  • Change Tracking

  • Approval Workflows

Customers can retrieve reference configuration data from CMDB instead of Ansible. In this example we use force.com CLI for this purpose.

Example
#!/bin/bash

force="/etc/ansible/scripts/force"
user="user"
password="password"

$force login -u $user -p $password > /dev/null 2>&1
if [[ $? -eq 0 ]]; then
  curvalue=`grep 'app_version' /tmp/ansible-config.conf|awk -F= '{print $2}'|tr -d ' '`
  $force query select Approved_Value__c, Force_Compliance__c from Acme_Cluster_ITIL_CI__c|head -n2|tail -n1|tr -d \" > /etc/ansible/temp/cademo_last_value
  $force record update Acme_Cluster_ITIL_CI__c a9Z36000000GzJ7EAK Reported_Value__c:$curvalue > /dev/null 2>&1
  $force logout -u=cloudaware@cloudaware.net > /dev/null 2>&1
  value=`awk -F, '{print $1}' /etc/ansible/temp/cademo_last_value`
  compliance=`awk -F, '{print $2}' /etc/ansible/temp/cademo_last_value`
  if [[ $compliance == true ]]; then
    echo "$value","$compliance"
  else
    value=`grep 'app_version' /tmp/ansible-config.conf|awk -F= '{print $2}'|tr -d ' '`
    echo "$value","$compliance"
  fi
else
  echo "Cannot login to Salesforce."
fi
BASH

Change Tracking Of Parameters

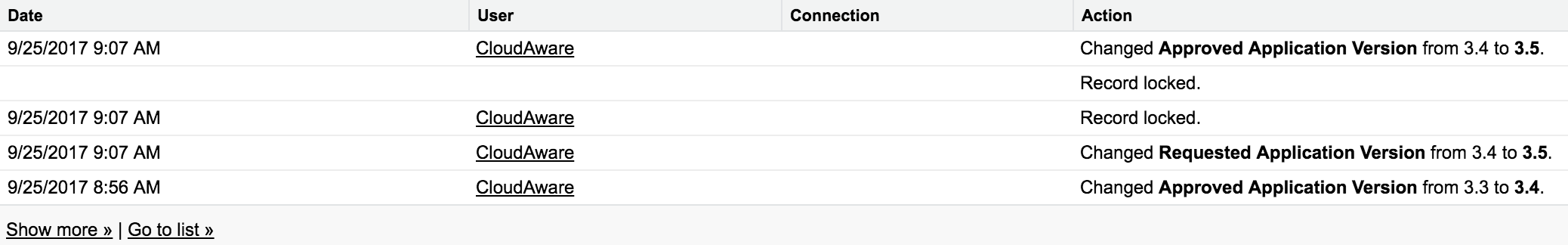

In Cloudaware, you can set up Field History Tracking to keep track of changes.

Approval Workflows

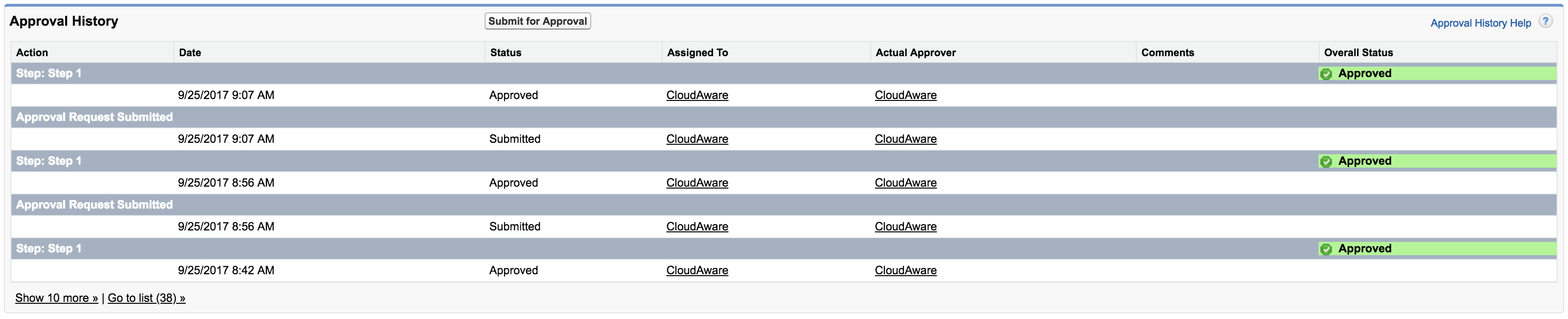

Using workflows functionality in Cloudaware, any change in parameters can be sent for your or a person in charge's approval:

Read more about creating approval processes here.
