Alibaba Cloud

This guide explains how to add an Alibaba Cloud account to Cloudaware. Alibaba Cloud is an integrated suite of cloud products and services to help digitalize by providing scalable, secure, and reliable cloud computing solutions.

Summary

To integrate Alibaba Cloud with Cloudaware:

  1. Create a RAM role or a RAM user in Alibaba Cloud:

    • RAM Role

      • Download the RAM template from Cloudaware

      • Copy the External ID in Cloudaware

      • Create a stack in the Alibaba ROS Console using the RAM template and External ID from Cloudaware

    • RAM User

      • Create a user in the RAM Console

      • Copy the user access key

  2. Add the Alibaba account to Cloudaware:

    • RAM Role: use the RAM Role ARN

    • RAM User: use the user access key and secret

For detailed instructions, refer to the guidelines below.

Add Alibaba Cloud Account

Using RAM Role (Recommended)

This option allows adding an Alibaba Cloud account to Cloudaware with a pre-generated template for RAM role creation. The template simplifies the creation of stack and RAM user in Resource Orchestration Service (ROS) in Alibaba Cloud.

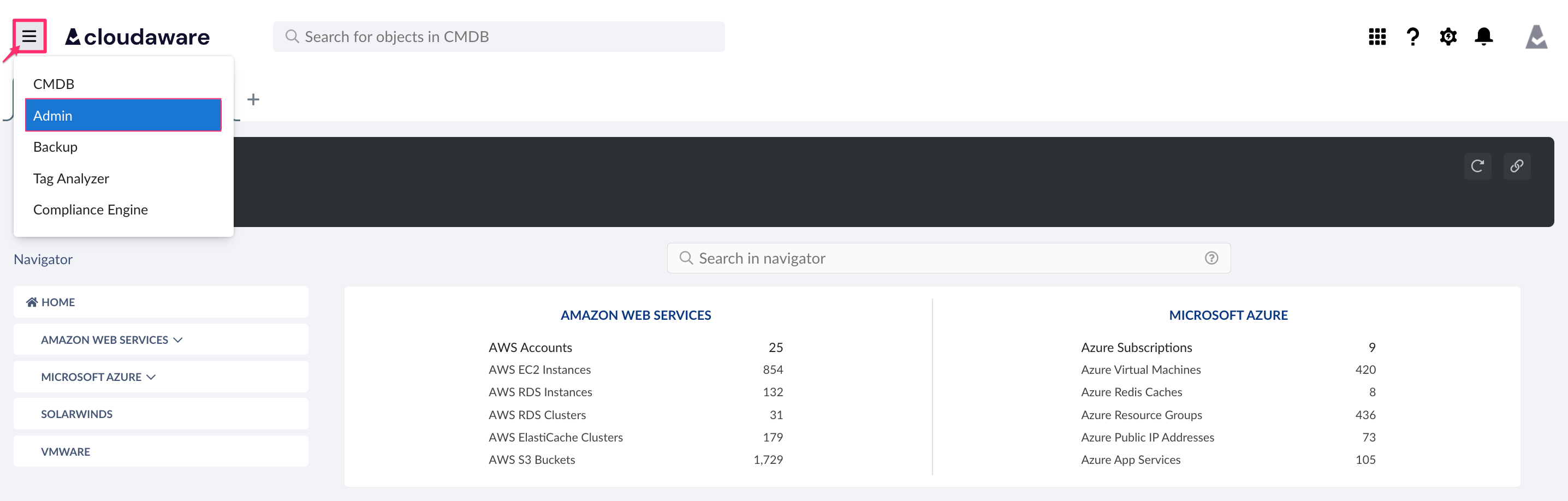

  1. Log in to Cloudaware → Admin.

    Alibaba Cloud - admin.png

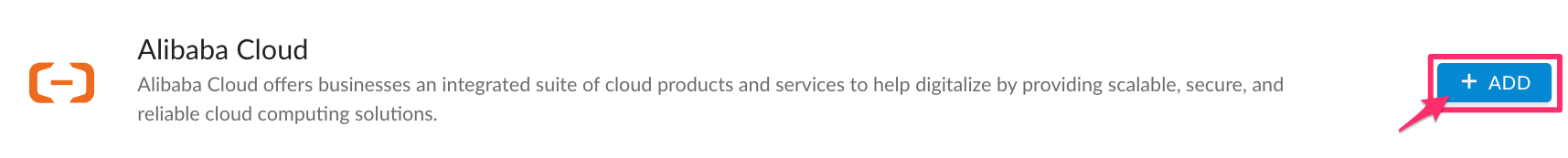

  2. Find Alibaba Cloud. Click +ADD.

    Alibaba Cloud - add Alibaba Cloud account.png

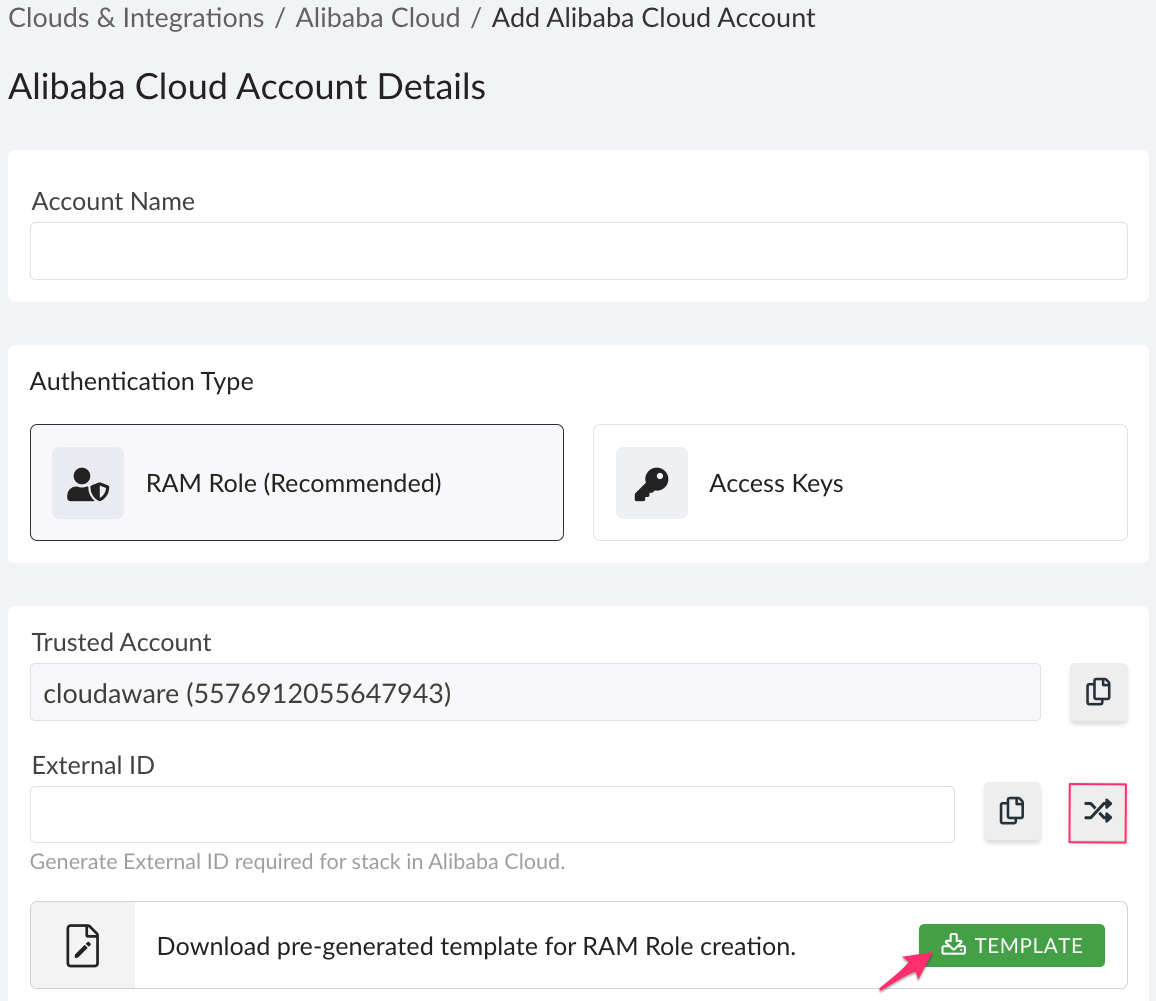

  3. Fill out the form:

    Alibaba Cloud - using RAM role - the integration form.png

    WHERE
    Account Name – provide a meaningful Alibaba Cloud account name
    Authentification Type – select 'RAM Role'
    Trusted Account – Cloudaware Alibaba Cloud account ID that is auto-populated in the template (copy the trusted account ID only if the Cloudaware RAM role will be created manually in Alibaba Cloud)
    External ID – generate External ID and save it for further setup in Alibaba

    Click TEMPLATE to download the Cloudaware template. Open the file in a text editor.

  4. Log in to the ROS console in Alibaba Cloud. Go to Templates → My Templates → Create template.

  5. In the section 'Edit template', paste the code of the downloaded Cloudaware template. Click Save Template.

  6. In the section 'Actions' for the created template, click Create Stack.

  7. In the section 'Access', insert the saved External ID in the AccessExternalId field. Click Create.

  8. Select the tab 'Resources'. Click on the role CloudAwareRamRole. Copy the Role ARN.

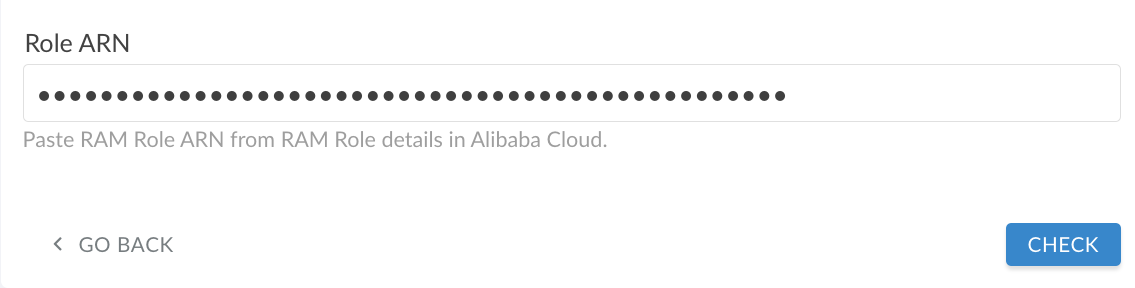

  9. Go back to Cloudaware. Paste the RAM Role ARN in the integration form:

    Alibaba Cloud - using RAM role - paste RAM Role ARN.png


    Click CHECK. Once the validation is passed, click SAVE.

  10. A green light in the ‘Status’ column indicates a successful configuration. If the light is red, contact support@cloudaware.com.

Using Access Keys

This option allows adding an Alibaba Cloud account to Cloudaware with user access key and secret.

  1. Log in to Cloudaware → Admin.

  2. Find Alibaba Cloud. Click +ADD.

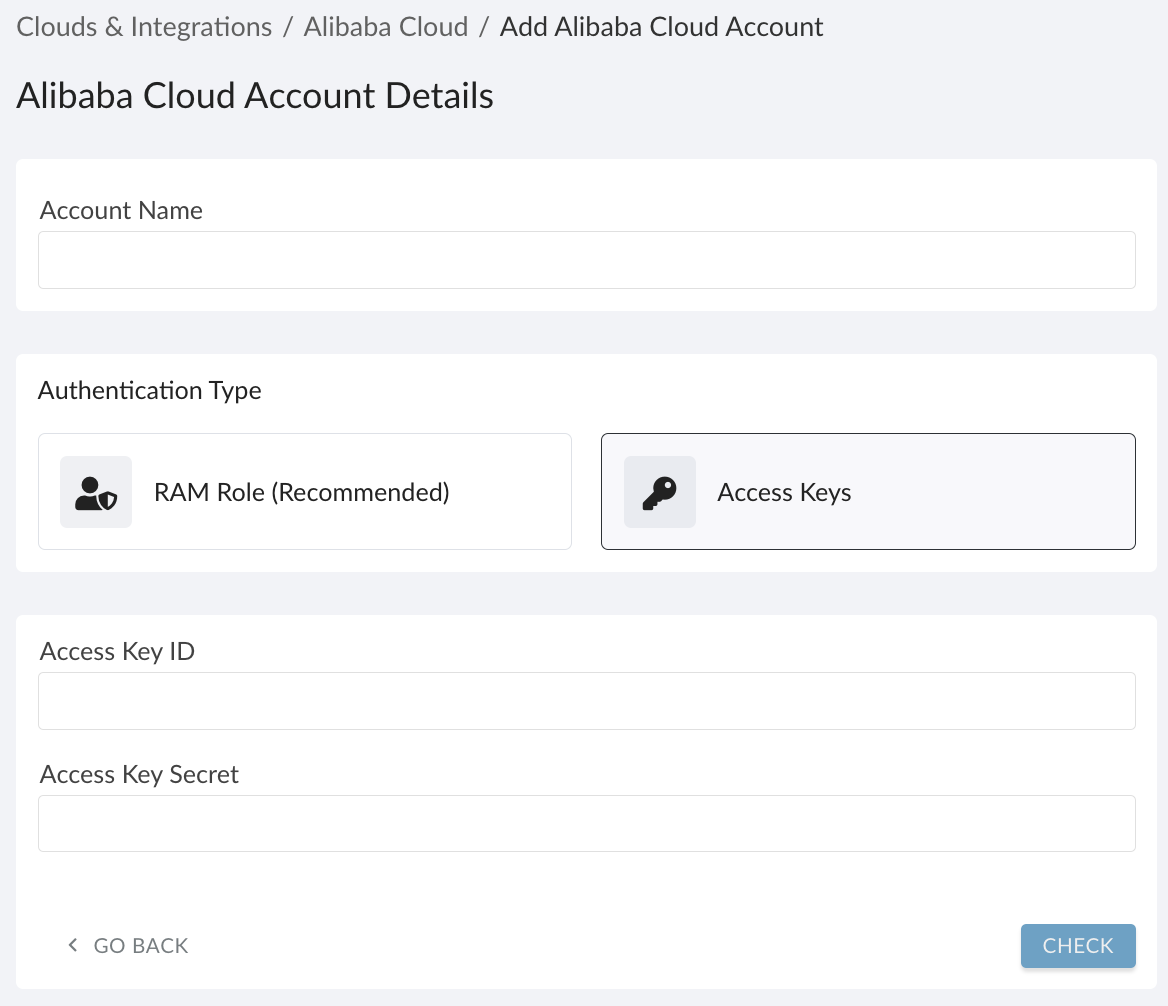

  3. Fill out the form:

    Alibaba Cloud - using Access keys - the integration form.png .png

    WHERE
    Name – Alibaba Cloud account name
    Authentification Type – select 'Access Keys'
    Access Key ID – the RAM user’s access key ID
    Access Key Secret – the RAM user’s access key secret


    Click CHECK. Once the validation is passed, click SAVE.

  4. A green light in the ‘Status’ column indicates a successful configuration. If the light is red, contact support@cloudaware.com.

List of Alibaba Cloud objects

Cloudaware supports the following Alibaba Cloud objects at the moment: CA10AC__CaAlibabaCloudAccount__c

  • Ali Account CA10AC__CaAlibabaCloudAccount__c

  • Ali ACK Cluster CA10AC__CaAlibabaCloudAckCluster__c

  • Ali ACK Cluster Resource CA10AC__CaAlibabaCloudAckClusterResource__c

  • Ali ACK Node CA10AC__CaAlibabaCloudAckNode__c

  • Ali ACK Node Pool CA10AC__CaAlibabaCloudAckNodePool__c

  • Ali ACK Node Pool ASP Link CA10AC__CaAlibabaCloudAckNodePoolAspLink__c

  • Ali ACK Node Pool SG Link CA10AC__CaAlibabaCloudAckNodePoolSgLink__c

  • Ali ACK Policy Ali ACK Policy `CA10AC__CaAlibabaCloudAckPolicy__c

  • Ali ACK Policy Instance CA10AC__CaAlibabaCloudAckPolicyInstance__c

  • Ali ACK Template CA10AC__CaAlibabaCloudAckTemplate__c

  • Ali ECS Auto Provisioning Group CA10AC__CaAlibabaCloudEcsAutoProvisioningGroup__c

  • Ali ECS Auto Snapshot Policy CA10AC__CaAlibabaCloudEcsAutoSnapshotPolicy__c

  • Ali ECS Dedicated Host CA10AC__CaAlibabaCloudEcsDedicatedHost__c

  • Ali ECS Dedicated Host Cluster CA10AC__CaAlibabaCloudEcsDedicatedHostCluster__c

  • Ali ECS Deployment Set CA10AC__CaAlibabaCloudEcsDeploymentSet__c

  • Ali ECS Disk CA10AC__CaAlibabaCloudEcsDisk__c

  • Ali ECS Disk Instance Link CA10AC__CaAlibabaCloudEcsDiskInstanceLink__c

  • Ali ECS HPC Cluster CA10AC__CaAlibabaCloudEcsHpcCluster__c

  • Ali ECS Image CA10AC__CaAlibabaCloudEcsImage__c

  • Ali ECS Image Component CA10AC__CaAlibabaCloudEcsImageComponent__c

  • Ali ECS Image Pipeline CA10AC__CaAlibabaCloudEcsImagePipeline__c

  • Ali ECS Image Snapshot Link CA10AC__CaAlibabaCloudEcsImageSnapshotLink__c

  • Ali ECS Instance CA10AC__CaAlibabaCloudEcsInstance__c

  • Ali ECS Instance SG Link CA10AC__CaAlibabaCloudEcsInstanceSgLink__c

  • Ali ECS Key Pair CA10AC__CaAlibabaCloudEcsKeyPair__c

  • Ali ECS Launch Template CA10AC__CaAlibabaCloudEcsLaunchTemplate__c

  • Ali ECS Launch Template Version CA10AC__CaAlibabaCloudEcsLaunchTemplateVersion__c

  • Ali ECS Launch Template Version Disk Link CA10AC__CaAlibabaCloudEcsLaunchTmplVersDiskLink__c

  • Ali ECS Launch Template Version SG Link CA10AC__CaAlibabaCloudEcsLaunchTmplVersSgLink__c

  • Ali ECS Network Interface CA10AC__CaAlibabaCloudEcsNetworkInterface__c

  • Ali ECS Network Interface SG Link CA10AC__CaAlibabaCloudEcsNetworkInterfaceSgLink__c

  • Ali ECS Reserved Instance CA10AC__CaAlibabaCloudEcsReservedInstance__c

  • Ali ECS Security Group CA10AC__CaAlibabaCloudEcsSecurityGroup__c

  • Ali ECS Security Group Rule CA10AC__CaAlibabaCloudEcsSecurityGroupRule__c

  • Ali ECS Snapshot CA10AC__CaAlibabaCloudEcsSnapshot__c

  • Ali ECS Snapshot Group CA10AC__CaAlibabaCloudEcsSnapshotGroup__c

  • Ali ECS Snapshot Link CA10AC__CaAlibabaCloudEcsSnapshotLink__c

  • Ali EIP Address CA10AC__CaAlibabaCloudEipAddress__c

  • Ali EIP Address Group CA10AC__CaAlibabaCloudEipAddressSegment__c

  • Ali FC Alias CA10AC__CaAlibabaCloudFcAlias__c

  • Ali FC Custom Domain CA10AC__CaAlibabaCloudFcCustomDomain__c

  • Ali FC Custom Domain Route CA10AC__CaAlibabaCloudFcCustomDomainRoute__c

  • Ali FC Function CA10AC__CaAlibabaCloudFcFunction__c

  • Ali FC Function Layer Version Link CA10AC__CaAlibabaCloudFcFunctionLayerVersionLink__c

  • Ali FC Function Mount Config CA10AC__CaAlibabaCloudFcFunctionMountConfig__c

  • Ali FC Function Version CA10AC__CaAlibabaCloudFcFunctionVersion__c

  • Ali FC Function VPC Link CA10AC__CaAlibabaCloudFcFunctionVpcLink__c

  • Ali FC Function VPC vSwitch Link CA10AC__CaAlibabaCloudFcFunctionVpcVSwitchLink__c

  • Ali FC Layer CA10AC__CaAlibabaCloudFcLayer__c

  • Ali FC Layer Version CA10AC__CaAlibabaCloudFcLayerVersion__c

  • Ali FC Trigger CA10AC__CaAlibabaCloudFcTrigger__c

  • Ali OSS Bucket CA10AC__CaAlibabaCloudOssBucket__c

  • Ali Public IP Address Pool CA10AC__CaAlibabaCloudPublicIpAddressPool__c

  • Ali Public IP Address Pool Zone Link CA10AC__CaAlibabaCloudPublicIpAddressPoolZonLink__c

  • Ali Region CA10AC__CaAlibabaCloudRegion__c

  • Ali SAE Application CA10AC__CaAlibabaCloudSaeApplication__c

  • Ali SAE Application Group CA10AC__CaAlibabaCloudSaeApplicationGroup__c

  • Ali SAE Application Instance CA10AC__CaAlibabaCloudSaeApplicationInstance__c

  • Ali SAE Application Log Config CA10AC__CaAlibabaCloudSaeApplicationLogConfig__c

  • Ali SAE Application Scaling Rule CA10AC__CaAlibabaCloudSaeApplicationScalingRule__c

  • Ali SAE Application Version CA10AC__CaAlibabaCloudSaeApplicationVersion__c

  • Ali SAE Config Map Application Link CA10AC__CaAlibabaCloudSaeConfigMapAppLink__c

  • Ali SAE Consumed Service CA10AC__CaAlibabaCloudSaeConsumedService__c

  • Ali SAE Ingress CA10AC__CaAlibabaCloudSaeIngress__c

  • Ali SAE Namespace CA10AC__CaAlibabaCloudSaeNamespace__c

  • Ali SAE Namespaced Config Map CA10AC__CaAlibabaCloudSaeNamespacedConfigMap__c

  • Ali SAE Published Service CA10AC__CaAlibabaCloudSaePublishedService__c

  • Ali SLB Access Control List CA10AC__CaAlibabaCloudSlbAccessControlList__c

  • Ali SLB Forwarding Rule CA10AC__CaAlibabaCloudSlbForwardingRule__c

  • Ali SLB Listener ACL Link CA10AC__CaAlibabaCloudSlbListenerAclLink__c

  • Ali SLB Listener CA Cert Link CA10AC__CaAlibabaCloudSlbListenerCaCertLink__c

  • Ali SLB Listener Certificate CA10AC__CaAlibabaCloudSlbListenerCertificate__c

  • Ali SLB Listener Server Cert Link CA10AC__CaAlibabaCloudSlbListenerServCertLink__c

  • Ali SLB Load Balancer CA10AC__CaAlibabaCloudSlbLoadBalancer__c

  • Ali SLB Load Balancer Listener CA10AC__CaAlibabaCloudSlbLoadBalancerListener__c

  • Ali SLB Security Policy CA10AC__CaAlibabaCloudSlbSecurityPolicy__c

  • Ali SLB Server Group CA10AC__CaAlibabaCloudSlbServerGroup__c

  • Ali Zone CA10AC__CaAlibabaCloudZone__c
